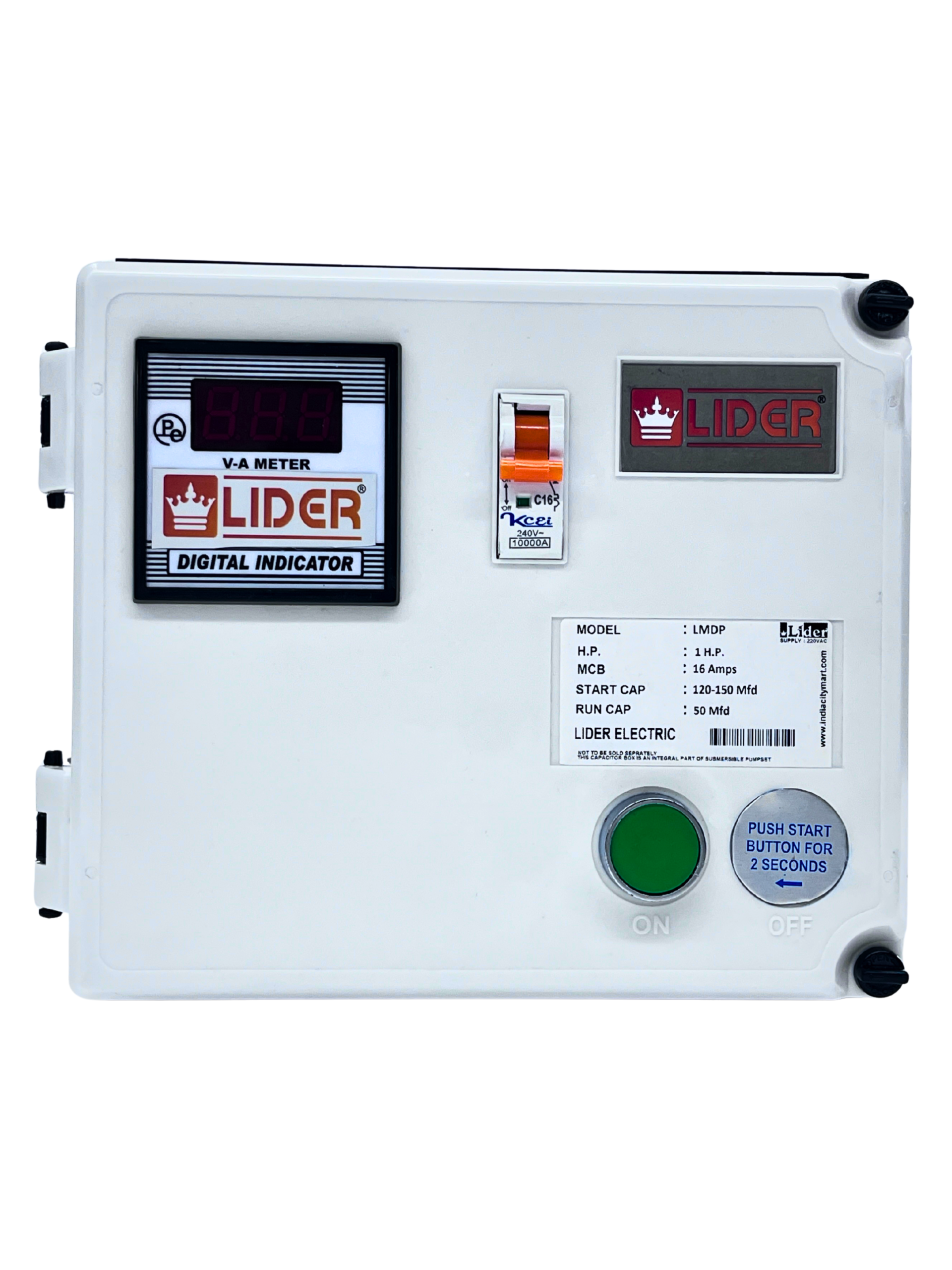

LMD-P

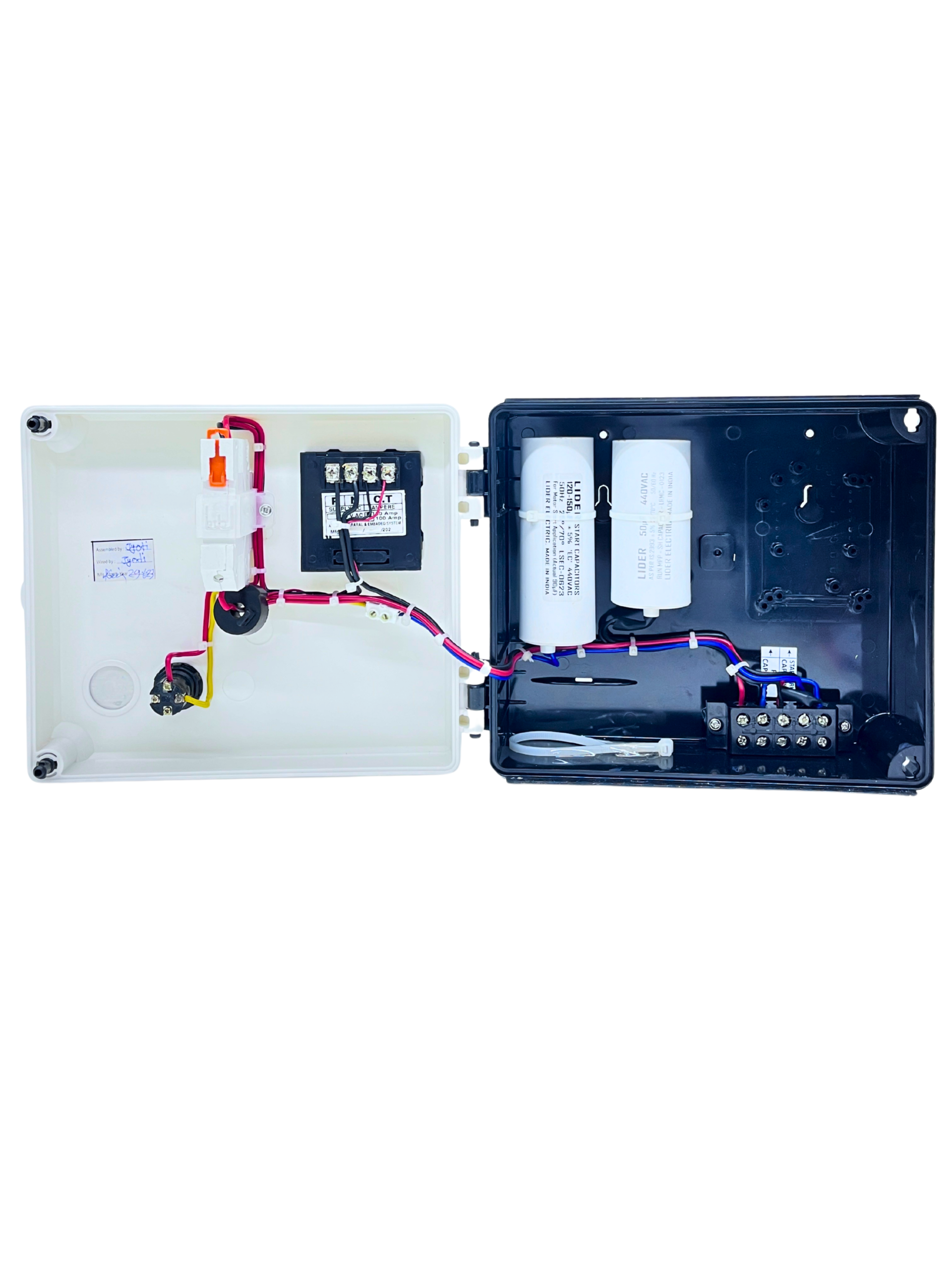

LMD-P - Image 2

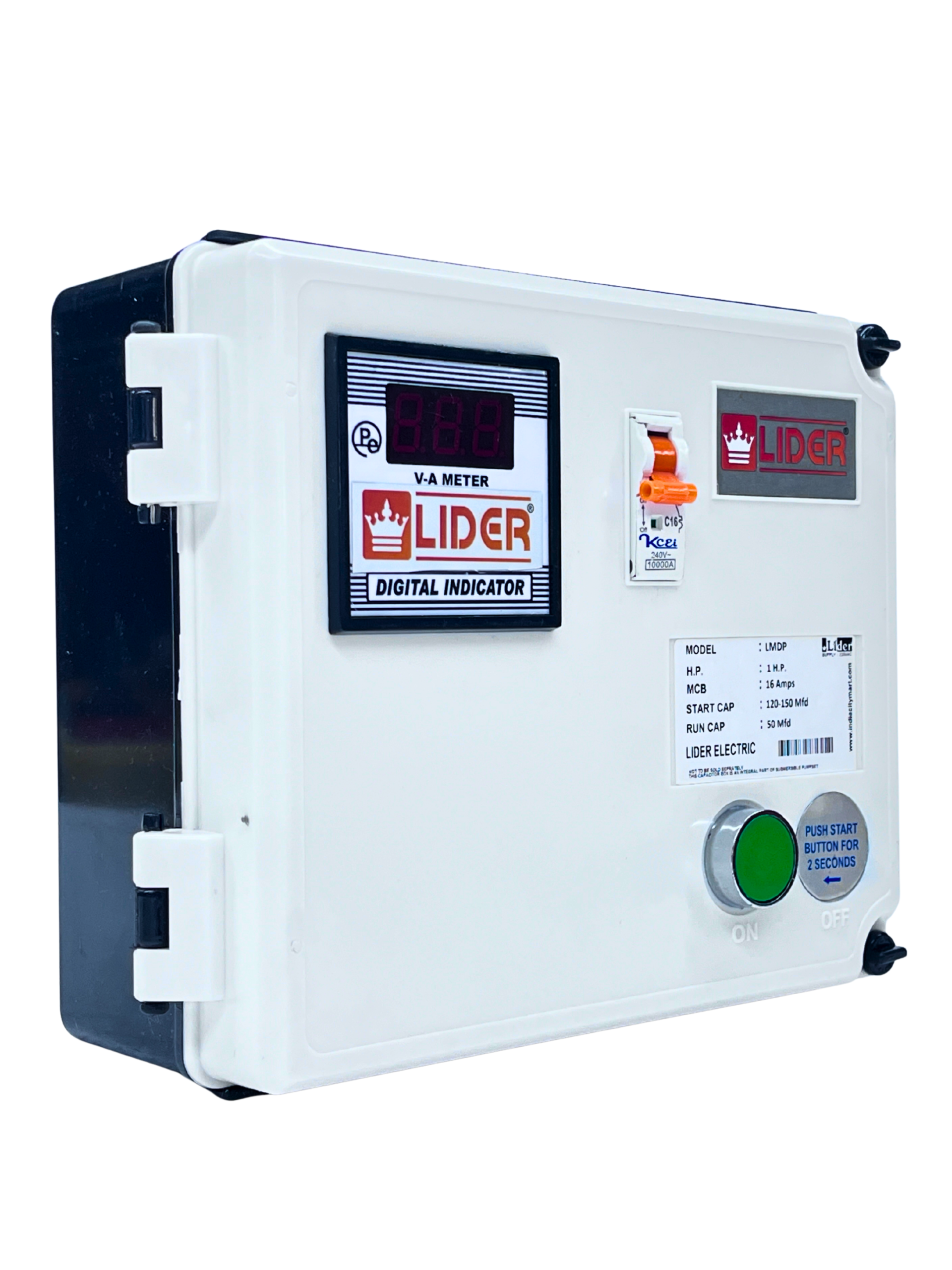

LMD-P - Image 3

LMD-P

Original price was: ₹2,286.Current price is: ₹1,143.

Thickness As per available Millimeter (mm)
Surface Color Black
Dimension (L*W*H) As per available Millimeter (mm)
- +
Categories: , , Tag:
Guaranteed Safe Checkout
  1. Type         HP            MCB      RUN Cap       START Cap          Wire
  2. 1050        1 HP           16A          50M               120- 150M         1.5MM
  3. 1560        1.5HP         20A          60M               150-200M        2.5MM
  4. 2072        2HP           20A         72M               200-250M         2.5MM
  • Digital meter is installed in this Starter, which shows good accurate ammeter and voltmeter value.
  • Switching device provided-Single Pole Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 10 Amps which ensures protection against short circuit.
  • Start Capacitors of rating 120-150 Mfd provided for giving initial torque to the motor of 1 HP and connected to Start Button which charges and discharges the start capacitor.
  • Run Capacitors of rating 36 Mfd provided for smooth running and better life to the motor of 1 HP which is connected to Neon bulb indicator for showing motor running condition.
  • An Ammeter is provided for measuring the current consumed by the motor pump.
  • A Voltmeter is provided for measuring incoming voltages and can be read by pressing a switch for the long life of the voltmeter.
  • Heavy Bakelite Connectors [30 Amps] capacity is provided for easy connection of incoming Power and outgoing Motor supply wires. [Please see full PRODUCT DESCRIPTION below]
    Our products are ideally suitable for water supply in houses, bungalows, offices, hospitals, factories, hotels & restaurants, apartments, multistory buildings, commercial centers, and all places with water tanks Overhead/Underground.

    Voltage (volts) 220~240 VAC, 50 Hz
    Horsepower (HP) 1HP
    M.C.B Current Rating 16
    Start Capacitor Rating 120-150 Mfd
    Run Capacitor Rating 50 Mfd
    Connection Diagram Connection diagram provided with Nuts and Screws
    Mounting Wall Mounting /Screw type.
    Quality Control Govt. C.P.R.I. Bhopal Tested and Certified
