LLS

Type         HP             MCB      RUN Cap    START Cap   contactor    Relay       Wire

1050        1 HP           16A          50M           120- 150M          16A           6-10      1.5MM

1560        1.5HP         20A         60M           150-200M          25A           9-14     2.5MM

2072        2HP           20A         72M            200-250M         25A           13-21   2.5MM

The LLS 2 HP Contactor Panel is designed for use with a rated voltage of 220V. The sleek black surface color adds a modern and professional look to the panel. It comes with a warranty for added peace of mind. The thickness and dimensions of the panel are as per the available millimeter specifications, ensuring a perfect fit for your specific needs. As a manufacturer and supplier, we guarantee a high-quality product that meets industry standards.

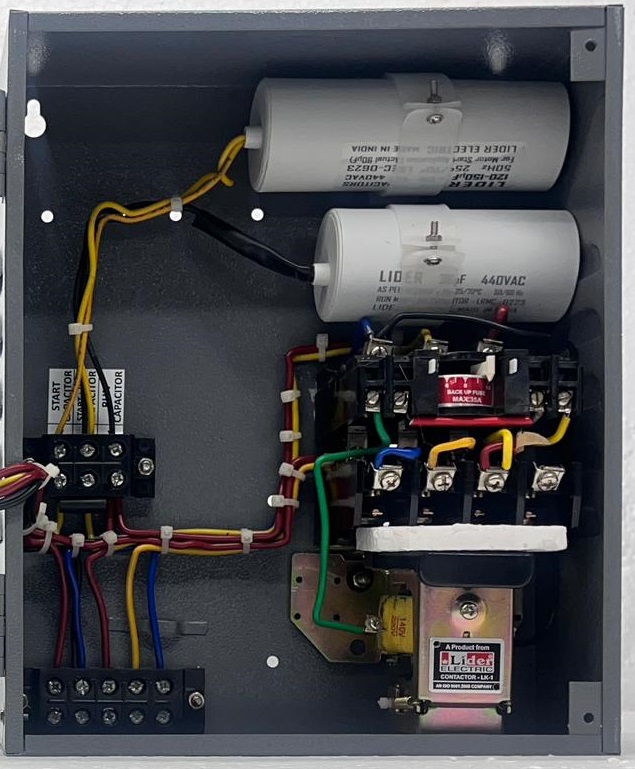

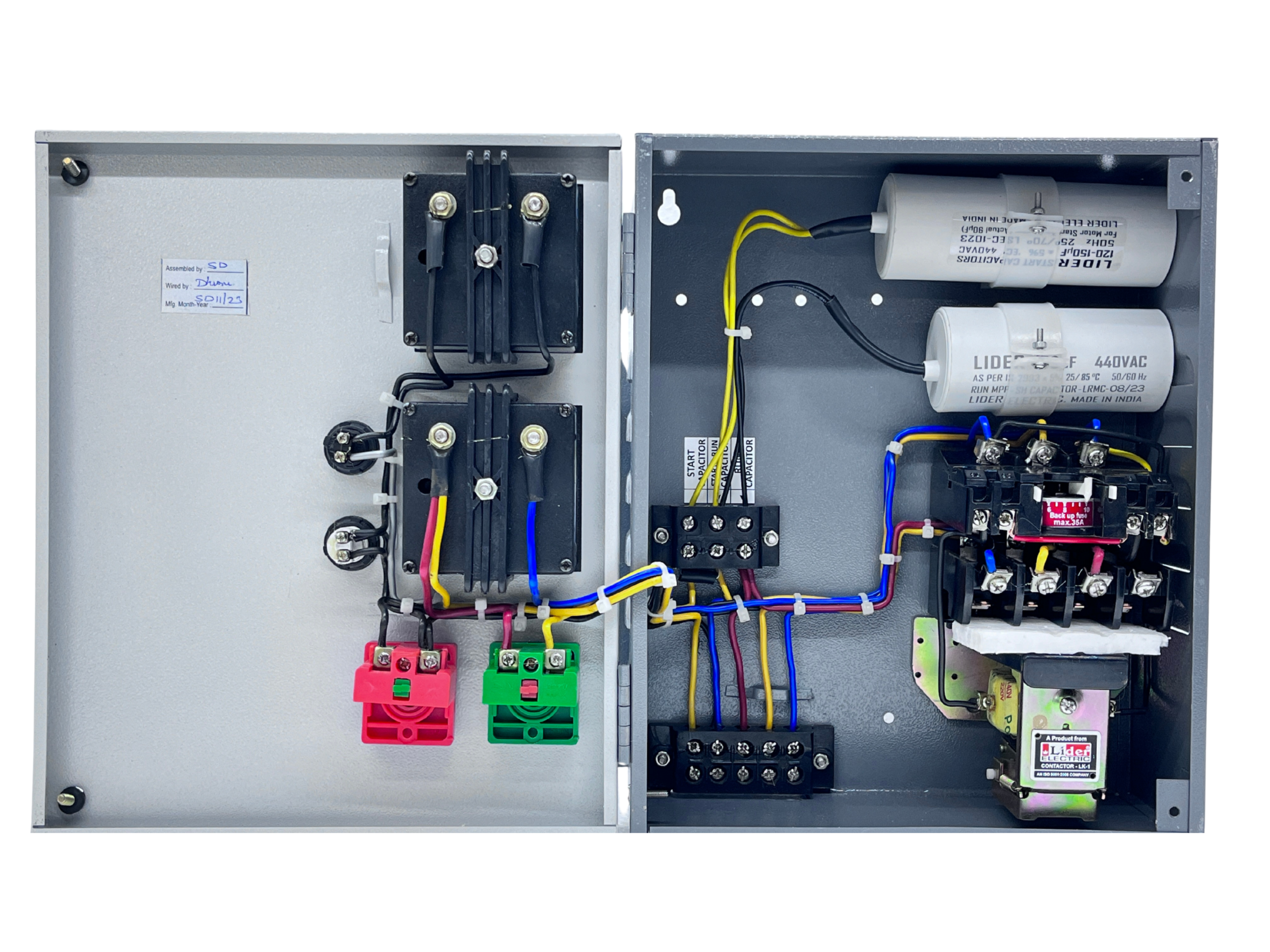

LIDER 1 HP Control Panel for single-phase Motor Pump provided with 16 Amps L&T type Contactor with easy replaceable heavy-duty fixed and moving contacts and Coil Voltage range between 160-240 Volts with easy replacement of coil.

Switching device provided-Single Pole Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 10 Amps which ensures protection against short circuit.

Start Capacitors of rating 120-150 Mfd provided for giving initial torque to the motor of 1 HP connected to Start Button which charges and discharges the start capacitor.

Run Capacitors of rating 50 Mfd  provided for smooth running and better life to the motor of 1 HP which is connected to Neon bulb indicator for showing motor running condition.

Ammeter provided with for measuring current consumed by the motor pump.
