LBLS-P

Type         HP             MCB      RUN Cap       START Cap        contactor          Relay           Wire

1050        1 HP           16A          50M               120- 150M            16A                 6-10            1.5MM

1560        1.5HP        20A         60M               150-200M            25A                 9-14            2.5MM

2072        2HP           20A         72M               200-250M            25A                 13-21          2.5MM

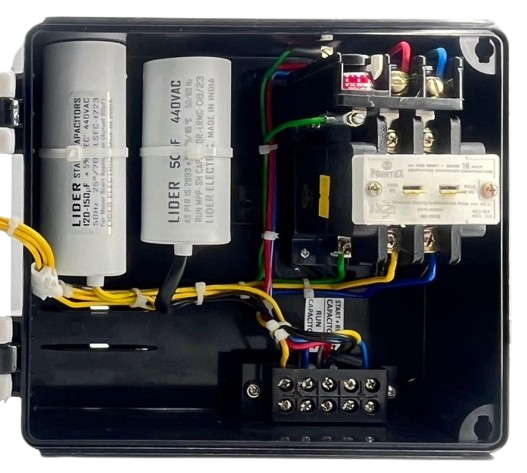

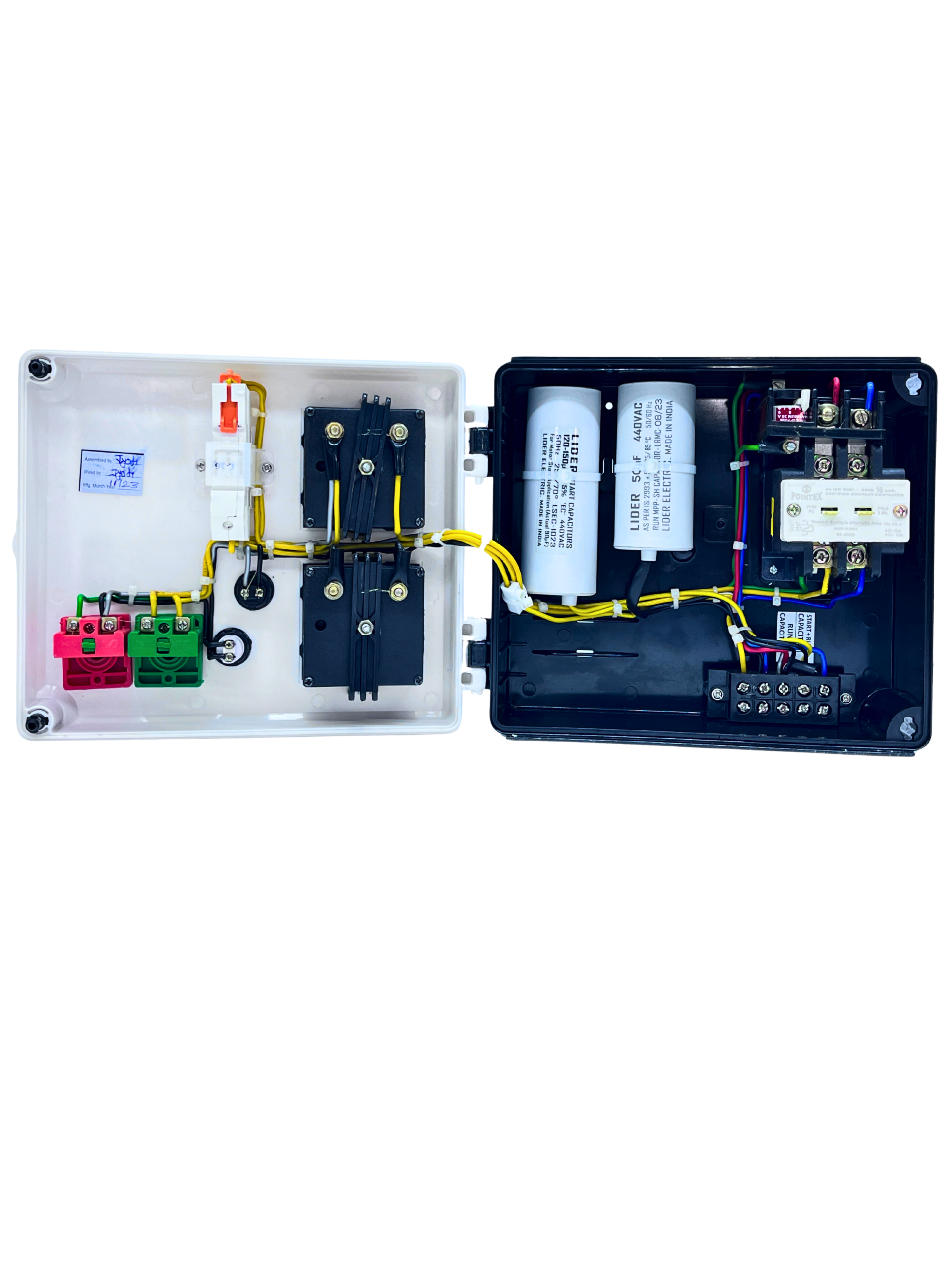

LIDER 1 HP Control Panel for single-phase Motor Pump provided with 16 Amps BCH type Contactor 2 pole with easy replaceable heavy-duty fixed and moving contacts and Coil Voltage range between 160-240 Volts with easy replacement of coil.

Switching device provided-Single Pole Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 16 Amps which ensures protection against short circuit.

Start Capacitors of rating 120-150 Mfd provided for giving initial torque to the motor of 1 HP connected to Start Button which charges and discharges the start capacitor.

Run Capacitors of rating 50Mfd  provided for smooth running and better life to the motor of 1 HP which is connected to Neon bulb indicator for showing motor running condition.

Relay of rating 6-10 provided for smooth running and better life to the motor of 1 HP.

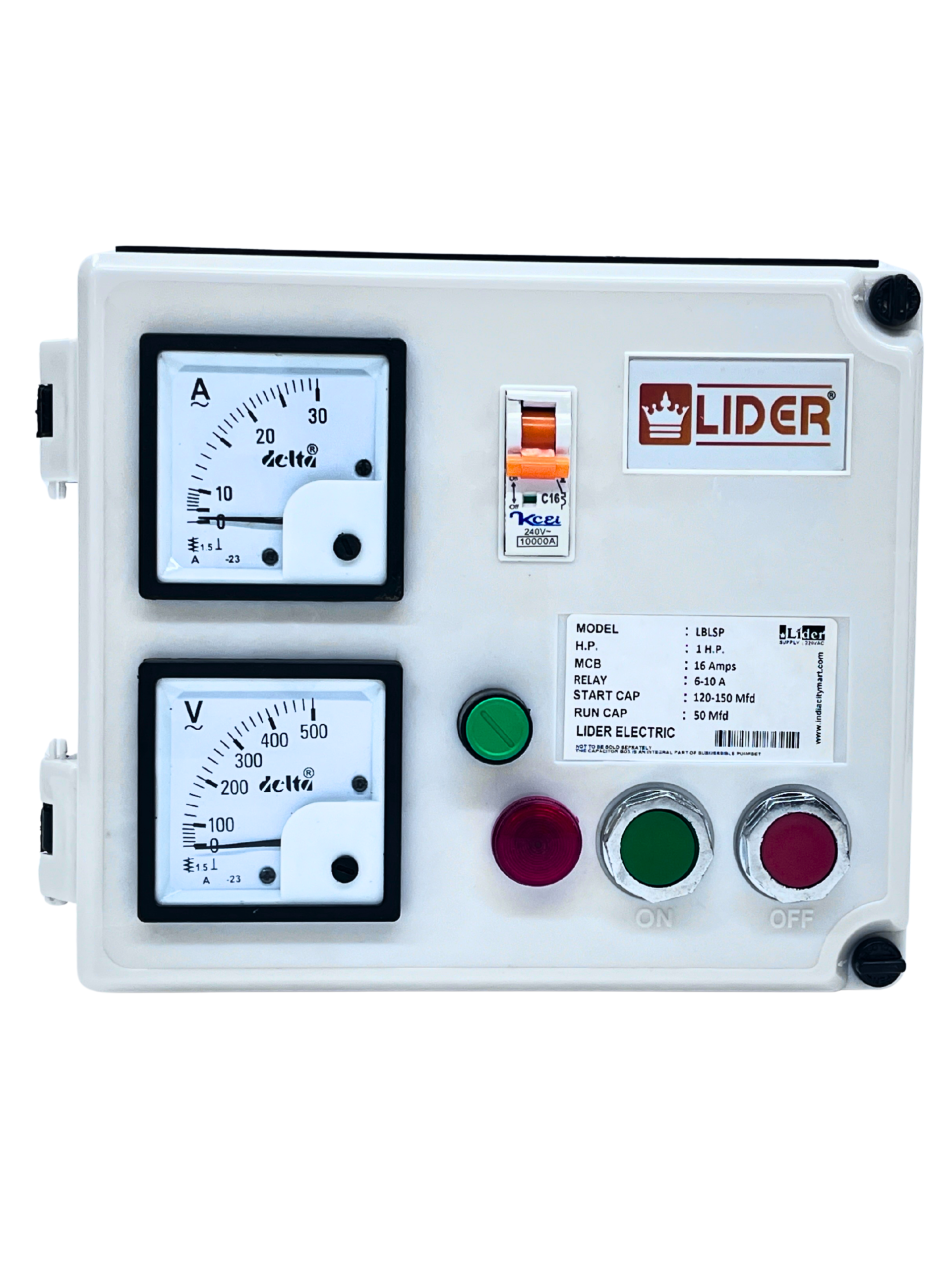

Ammeter provided with for measuring current consumed by the motor pump.

Voltmeter provided for measuring incoming voltages and can be read by pressing a switch for the long life of voltmeter. Heavy Bakelite Connectors [30 Amps] capacity provided for easy connection of incoming Power and outgoing Motor supply wires.
