LBLS

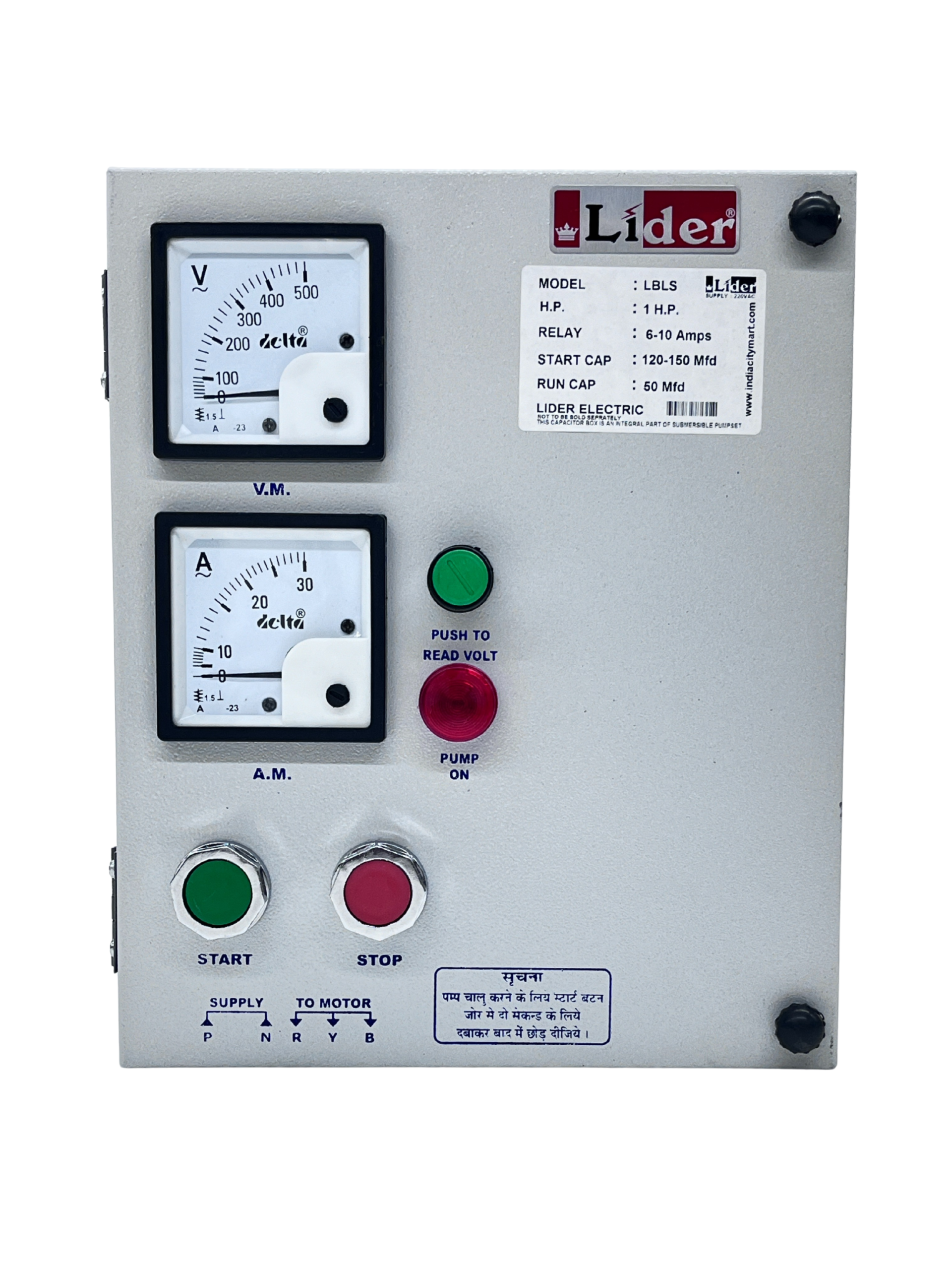

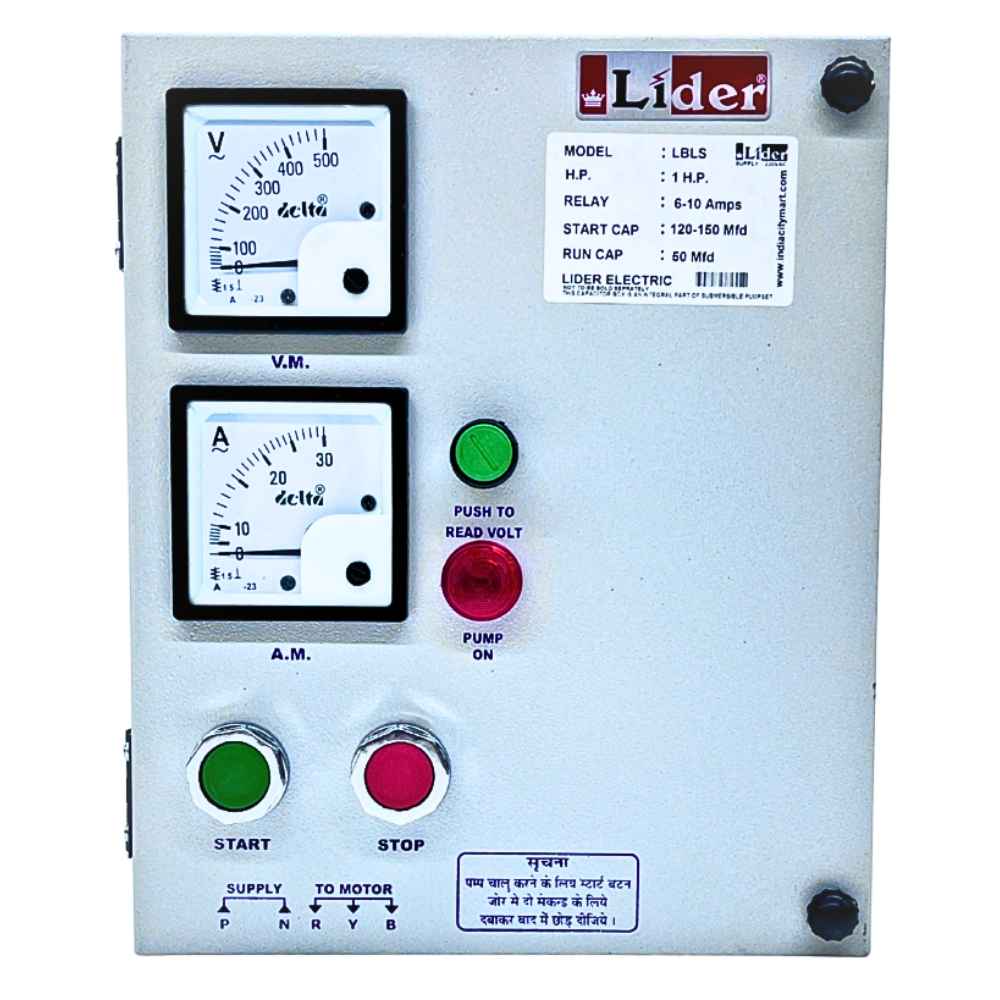

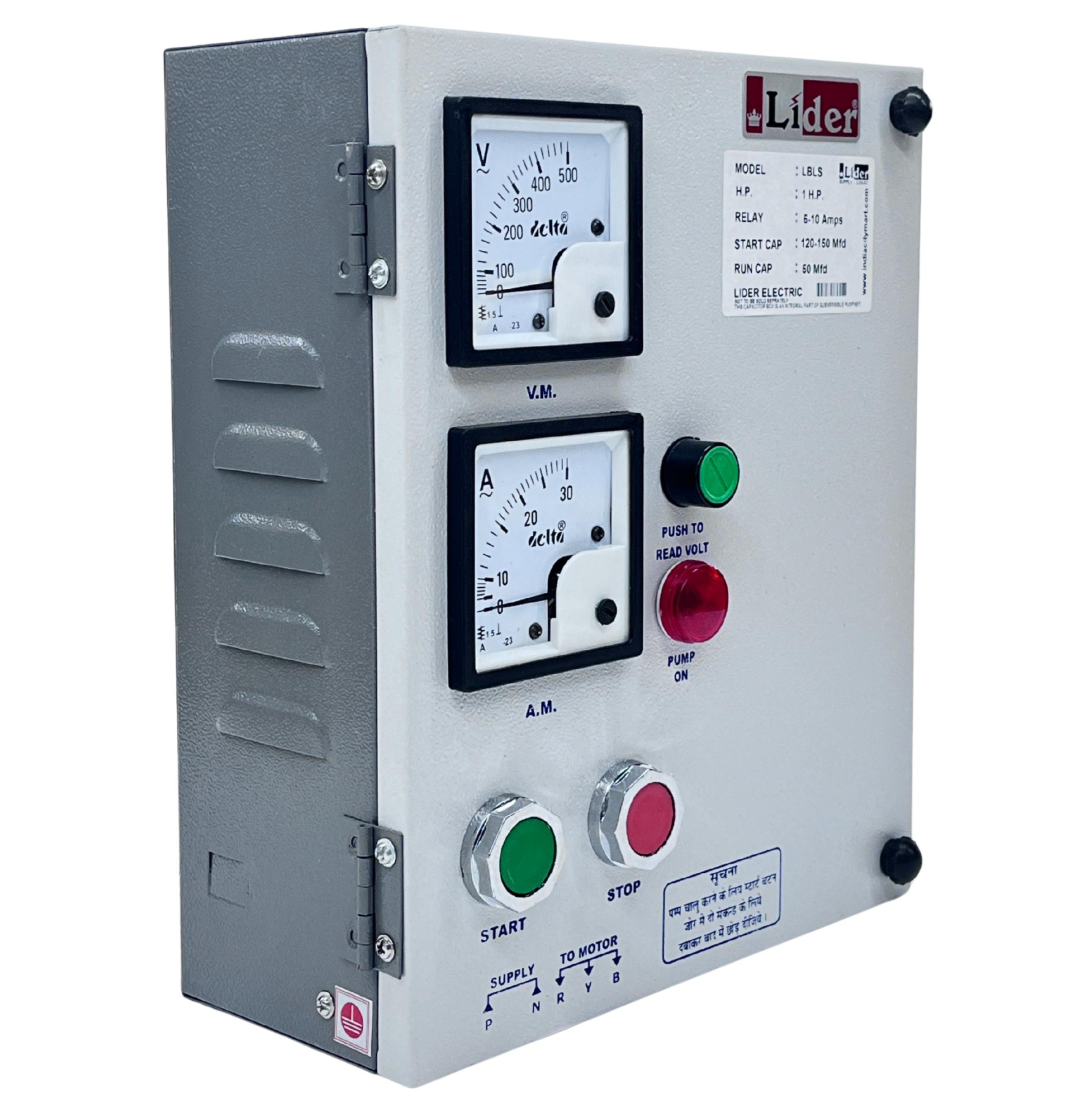

The LBLS 1 HP to 2 HP(2P) MCB-Relay Contactor Panel is a high-quality electrical component designed for use in residential and commercial applications. This panel features a sleek white surface color and is designed to be installed with a rated voltage of 220 volts. The thickness and dimensions of the panel can be customized to suit the specific requirements of the installation, ensuring a perfect fit every time, customers can have peace of mind knowing that this panel is built to last. As a manufacturer and supplier, we take pride in offering a durable and versatile product that meets the highest standards of quality and safety.

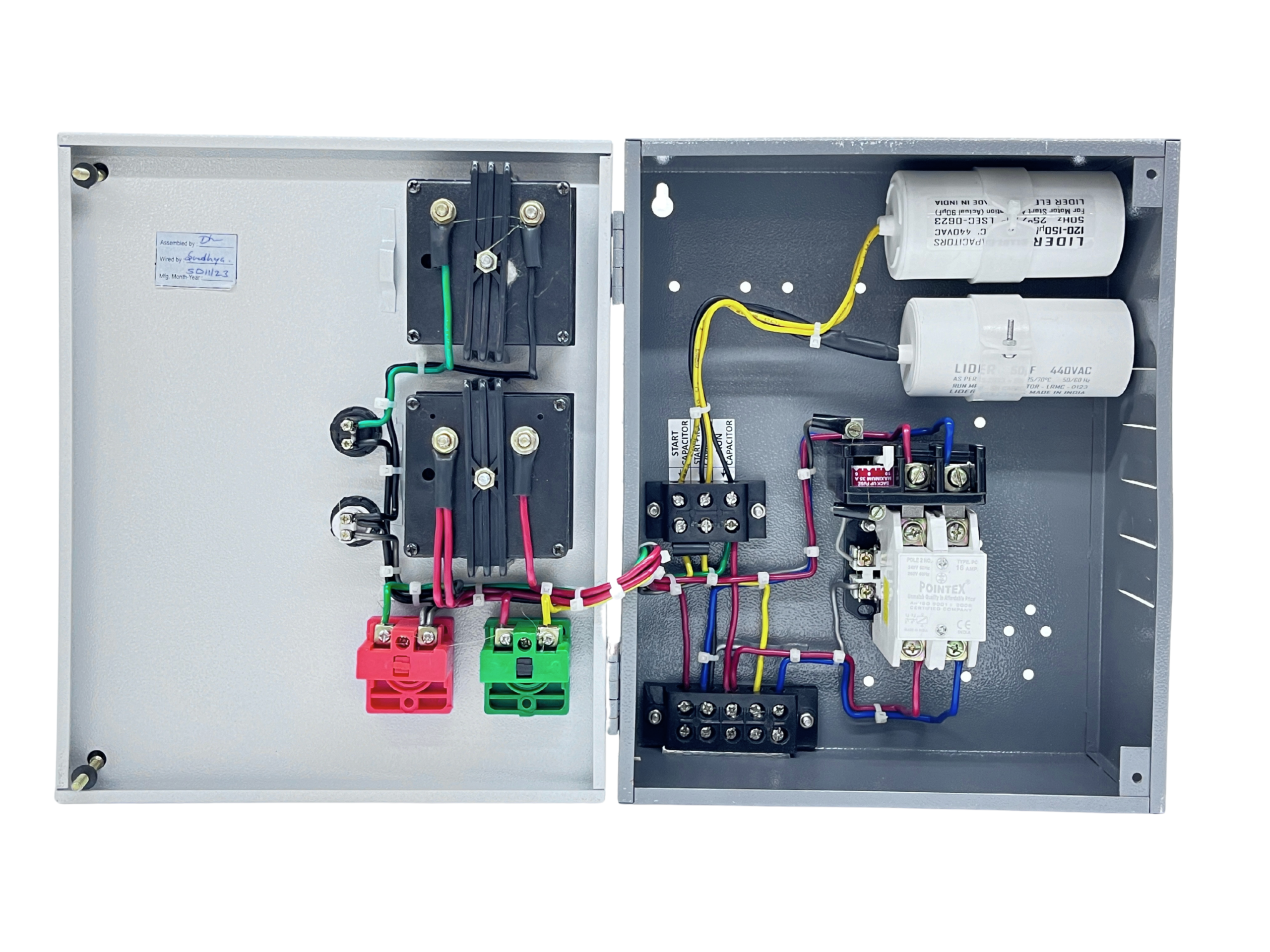

LIDER 1 HP Control Panel for single-phase Motor Pump provided with 16 Amps BCH type Contactor with easy replaceable heavy-duty fixed and moving contacts and Coil Voltage range between 160-240 Volts with easy replacement of coil.

Switching device provided-Single Pole Miniature Circuit Breaker [MCB-C Series-Inductive Load] of capacity 10 Amps which ensures protection against short circuit.

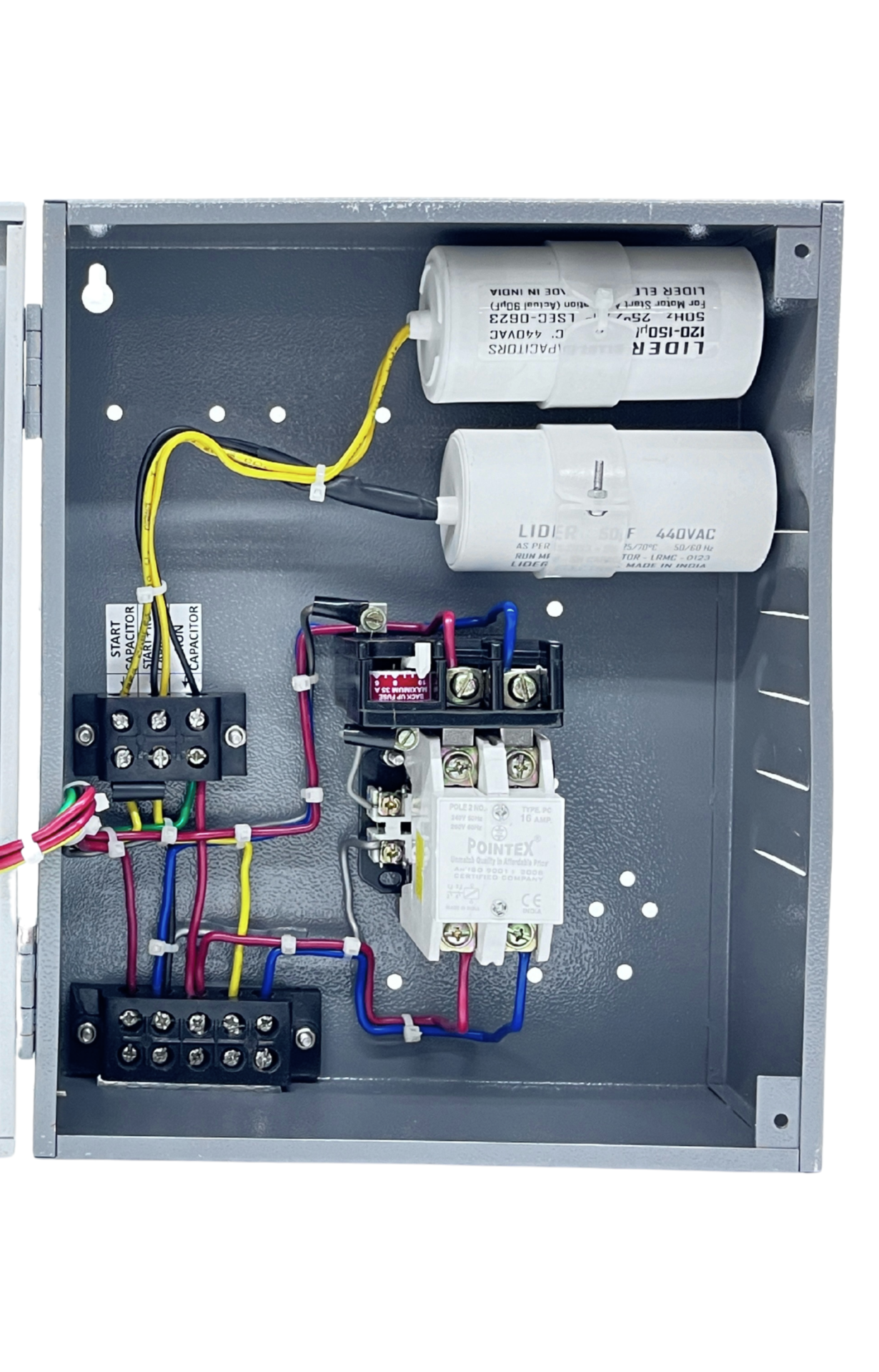

Start Capacitors of rating 120-150 Mfd provided for giving initial torque to the motor of 1 HP connected to Start Button which charges and discharges the start capacitor.

Run Capacitors of rating 50 Mfd  provided for smooth running and better life to the motor of 1 HP which is connected to Neon bulb indicator for showing motor running condition.

Relay of rating 6-10 provided for smooth running and better life to the motor of 1 HP.

Ammeter provided with for measuring current consumed by the motor pump.

Voltmeter provided for measuring incoming voltages and can be read by pressing a switch for the long life of voltmeter. Heavy Bakelite Connectors [30 Amps] capacity provided for easy connection of incoming Power and outgoing Motor supply wires.
